Professional Crane Load Testing Up to 55 Tonnes

SOLAS & ILO Compliant Testing | Marine Lifting & Rigging Certification | Australian Marine Engineers

✓ DNV & Lloyd's Register Approved • NATA Calibrated

Comprehensive Crane Load Testing for Maximum Safety

Crane load testing is a critical safety requirement for any vessel operating under international maritime regulations. At Qualships Australia, we provide certified crane load testing services up to 55 tonnes with full equipment and expert marine engineering supervision. Our testing procedures comply with both SOLAS (Safety of Life at Sea) and ILO (International Labour Organization) standards, ensuring your vessel's lifting systems are safe, reliable, and compliant.

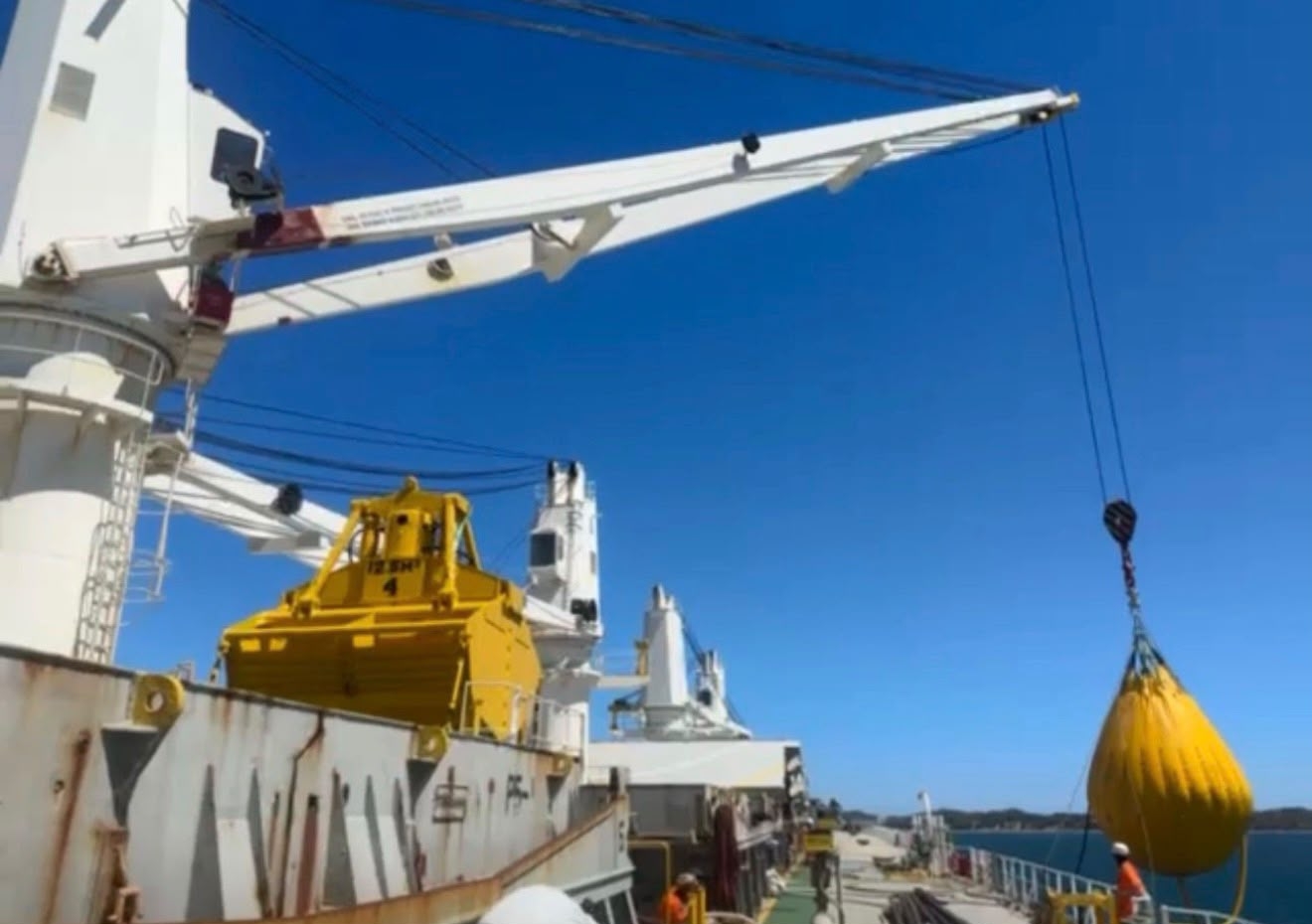

Crane Load Testing - Water Bag Test on Ship Crane
Why Crane Load Testing Matters: Modern cargo handling operations demand absolute reliability. Load testing verifies that cranes, davits, and other lifting equipment can safely handle their rated capacities and identify potential weaknesses before catastrophic failure occurs at sea.

Our Crane Load Testing Capabilities

We maintain a comprehensive range of load testing equipment and expertise to serve merchant vessels, bulk carriers, tankers, and offshore support vessels operating across Australia and the Indo-Pacific region.

Deck Crane Testing

Full SWL verification for ship's derricks and pedestal cranes up to 55 tonnes with certified load cells and documentation.

Crane Gangway Systems

Specialized testing of crane-supported boarding systems including frame load distribution, hinge point verification, and slip-ring inspection.

Davit Load Testing

Lifeboat and rescue equipment davit testing with dynamic and static load verification per SOLAS Chapter II-1 requirements.

Rigging & Sling Testing

Wire rope, synthetic sling, and chain testing with NDT inspection and documentation for cargo handling certification.

Hoist & Winch Verification

Electric and hydraulic hoist load testing, brake validation, and safe working load certification.

Structural Load Analysis

Deck beam and supporting structure analysis under load, including stress testing and finite element assessment.

SOLAS Requirements for Crane Load Testing

SOLAS Regulation II-1/3-1 mandates that all cargo handling equipment must be subject to initial and periodic inspections. Crane load testing is not optional—it's a regulatory obligation for vessels engaged in international voyages.

Key SOLAS Compliance Points:

  • Safe Working Load (SWL) Verification: All cranes must be tested to 125% of their rated SWL or higher as specified by the manufacturer
  • Initial Certification: New vessels or newly installed equipment requires load testing before first use
  • Periodic Inspections: Annual surveys by Recognized Organizations (DNV, Lloyd's Register, BV) require documented evidence of working condition
  • Test Certificates: Load test reports must accompany the vessel's Safe Working Load (SWL) certification
  • Documentation Trail: All testing records must be retained aboard and available for Port State Control (PSC) inspections

Failure to maintain valid load test certificates can result in vessel detention during PSC inspections and disruption to your trading schedule.

ILO Maritime Labour Convention Compliance

The ILO Maritime Labour Convention (MLC) 2006 emphasizes occupational safety and health standards across the maritime industry. Crane load testing is integral to meeting these standards by protecting crew members and dock workers involved in cargo operations.

ILO Standards Addressed Through Load Testing:

  • Title 1, Part A, Chapter 1: Minimum requirements for working and living conditions—safe cargo handling equipment is essential
  • Work-Related Injury Prevention: Regular testing identifies defects that could cause injury or fatality
  • Crew Competency & Training: Certified equipment and clear SWL documentation support crew training programs
  • Port State Control Compliance: Many flag states use ILO MLC as a baseline for local port authority inspections
Insurance & Liability: Vessels without current, certified load test records may face insurance claim denials in the event of cargo handling incidents. Regular testing documentation protects your company's legal liability.

Our Load Testing Process

We follow a structured, transparent approach to crane load testing that meets all regulatory standards and delivers clear, defensible documentation:

1. Pre-Test Planning & Site Assessment

We conduct a detailed inspection of the crane structure, hydraulic/electrical systems, and supporting deck structure. We confirm the manufacturer's specifications and identify any areas of concern requiring remedial action before testing.

2. Load Cell Calibration & Equipment Setup

All load cells are calibrated to NATA standards. We install certified measuring equipment and establish a safe testing zone with appropriate signage and personnel control.

3. Static Load Testing

Load is applied incrementally in 25% steps of the required test load (typically 125% SWL) with hold times at each increment. We monitor structural deformation, hydraulic pressure, and electrical system response.

4. Dynamic Load Testing

For systems requiring dynamic verification (davits, gangway systems), we test lift-and-hold cycles, rotation under load, and emergency stop functionality.

5. Documentation & Certification

All test data is recorded in a comprehensive load test report including photographs, load cell readings, certified calculations, and recommendations. We issue a Load Test Certificate valid for the vessel's insurance and flag state compliance.

Test Load Standards & Verification

Equipment Type Test Load Compliance Standard Certification Validity
Ship's Derrick Cranes 125% SWL SOLAS II-1/3-1, DNV/LR 5 years (with annual surveys)
Cargo Handling Davits 125% SWL + dynamic test SOLAS II-1/6, ILO MLC 5 years
Lifeboat Davits 125% WLL, 6-cycle dynamic SOLAS III/1, IMO Res. MSC.81(70) 12 months
Crane Gangway Systems 125% SWL + personnel load IMCA, DNV, LR 2-5 years
Wire Rope & Slings 100% WLL (5x safety factor) AS/NZS 4344, ILO 152 1-2 years

Why Choose Qualships Australia for Crane Load Testing?

✓
DNV & Lloyd's Register Approved

Our test reports are recognized by major flag states and insurance providers

✓
NATA-Calibrated Equipment

All load cells traceable to international standards

✓
Experienced Marine Engineers

Supervisors with 15+ years' cargo handling and marine lifting experience

✓
Sydney Workshop + Vessel Attendance

We travel to your vessel or conduct testing at our Wetherill Park facility

✓
Rapid Turnaround

Load test certificates issued within 48 hours of testing

✓
Competitive Pricing

Fixed rates for standard tests; flexible options for complex structures

✓
Full Documentation Support

We prepare all narrative reports, calculations, and compliance statements needed for PSC inspections

Common Crane Defects We Identify

Load testing often reveals issues that routine visual inspection misses. Early identification prevents costly downtime and safety incidents:

  • Structural fatigue cracks in boom and pedestal welds
  • Hydraulic system bypass or pressure loss under load
  • Electrical brake slippage or failure to hold rated load
  • Coupling and bearing misalignment reducing operational life
  • Paint corrosion indicating subsurface steel degradation
  • Cable stretch or wear in block and tackle systems

Industry Standards & Regulations We Work To

  • SOLAS: International Convention for the Safety of Life at Sea (Chapters II-1, III, V)
  • ILO MLC 2006: Maritime Labour Convention—work-related health and safety
  • IMCA: International Marine Contractors Association guidelines for crane operations
  • DNV Rules: Det Norske Veritas Classification Society standards
  • Lloyd's Register: LR Class Specification for cargo handling equipment
  • NATA: National Association of Testing Authorities—calibration and measurement
  • AS/NZS 4344: Safe use of wire rope for lifting in Australia/NZ
  • AS/NZS 1418.1: Cranes (bridge and gantry) specification and safe use

Crane Load Testing for Port State Control Readiness

During PSC inspections, port authorities check for valid Load Test Certificates as part of structural safety verification. A current, properly certified load test report demonstrates:

  • Vessel ownership's commitment to safety compliance
  • Proper maintenance and equipment management systems
  • No defects requiring immediate detention or operational restrictions

Vessels without valid certificates risk detention and operational delays. We help you maintain compliance so you're ready for any PSC boarding.

Frequently Asked Questions

How often must crane load testing be performed?

SOLAS requires annual inspections by Recognized Organizations. Full load testing is typically required at 5-yearly intervals unless specific defects are identified. We recommend annual load monitoring even in off-years.

What is the cost of crane load testing?

Pricing depends on crane size, test load, vessel accessibility, and whether testing occurs in our workshop or onboard. Contact us for a customized quote.

Can load testing be done while the vessel is operating?

Yes, we conduct load testing during port calls without disrupting cargo operations. Testing typically takes 6–12 hours depending on equipment complexity.

What if the crane fails the load test?

We identify the defect and provide a detailed failure report. Our engineers work with your team to plan corrective action (welding repairs, component replacement, etc.) and retesting.

Are load test reports valid internationally?

Yes. Our reports are recognized by major flag states, insurance underwriters, and port authorities worldwide.

Schedule Your Crane Load Testing Today

Ensure your vessel meets SOLAS and ILO compliance. Contact Qualships Australia for a fast, professional load testing service up to 55 tonnes.
